Kohinoor (Green UPVC ISI Casing Pipes)

GREEN uPVC ISI casing pipes(Type ‘CM’) AS PER IS: 12818:2010

Green Blue Casing Pipes are produced as per IS: 12818 standards, used for casing purpose in the Bore Well as a superior alternative of Metal pipes because of to its long life, Economical, easy to carry & installation, non-corrosion, non-conductive, no bacterial growth. To produce Blue Casing Pipes, 96% virgin PVC resins are used.

• Green uPVC CM Pipe Are available in a complete range from 40mm to 200mm (1/2” to 8”)

Technical Specification - GREEN ISI Casing Pipes As per IS 12818: 2010

Nominal Diameter (in mm)	Nominal Diameter (in Inch)	Outer Diameter of Pipe at any point (in mm)		Mean Outer Diameter Over Connection	Wall Thickness (in mm)		Length
		Min	Max	Max (in mm)	Min	Max
40	1.5"	48.0	48.3	52.0	3.5	4.0	3 Meter
50	2.0"	59.9	60.3	65.0	4.0	4.6	3 Meter
80	3.0"	80.0	88.4	94.0	4.0	4.6	3 Meter
100	4.0"	112.9	113.4	120.0	5.0	5.7	3 Meter
125	5.0"	139.9	140.5	150.0	6.5	7.3	3 Meter
150	6.0"	164.8	165.6	178.0	7.5	8.5	3 Meter
175	7.0"	199.8	200.6	215.0	8.8	9.8	3 Meter
200	8.0"	224.5	225.8	243.0	10.0	11.2	3 Meter

GREEN uPVC CM PIPE IS MAINLY USED FOR BOREWELL

GREEN uPVC RIBBED SCREEN CASING (RMS)PIPES AS PER IS: 12818:2010

These pipes are provided with V shape ribs on its exterior surface. Special design of this structure with fine slots provided on pipe, prevent entry of even small particles and hence permeability of the screen gets properly maintained. These pipes are generally used in combined wells or used for specific formation where normal screen pipes does not work, e.g. fine sand. These pipes are provided with threaded joints with one end of the pipe is male threaded and another end with female threaded socket.

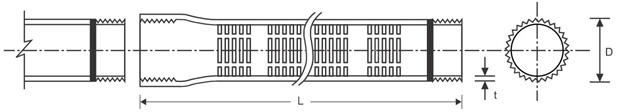

Dimension of RIBBED SCREEN CASING PIPE

Nominal Size	Outer Diameter (in mm)		Wall Thickness (in mm)		Length
	Min.	Max.	Min.	Max.
40mm(1½") 50mm (2") 80mm (3") 100mm (4") 125mm (5") 150mm (6")	52 64 92 117 144 169	52.2 64.2 92.3 117.3 144.4 169.4	3.5 4.0 4.0 5.0 6.5 7.5	4.0 4.6 4.6 5.7 7.3 8.5	2/3 2/3 2/3 2/3 3 2/3

Note : Ribbed screen pipes as per IS 12818 are available in blue colour. One end of the pipe will be male threaded and other end will be female threaded socket.

FEATURES & BENEFITS GREEN uPVC Casing PIPES

GREEN uPVC CM PIPE IS MAINLY USED FOR BOREWELL

These pipes are used for filtration of groundwater and are install at a certain depth of the bore well pipeline where clean water is available.
