GREEN uPVC COLOUMN PIPE FOR SUBMERSIBLE PUMP

These pipes have been specially designed and manufactured under stringent quality standards. They are tested to withstand system load comprising of pump, water and pipe weight with adequate factor of safety. Due to unique design of square threads, they can withstand considerable shock and jerk load during operation.

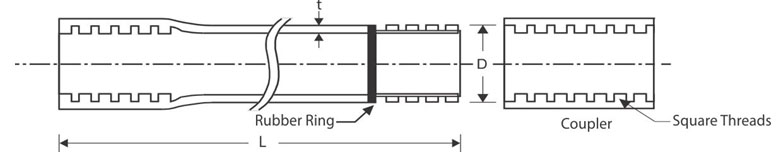

These pipes are available in 25 to 100mm (1" to 4”) in different classes. Pipes are available in 3 meter length with square threads fitted with rubber sealing ring at male threaded end.

Pipes have female belled threads at one end and male threads on the other end and / or with separate coupler as required.

Dimension of Column Pipe for Sumbersiable Pump

Size		Outer Diameter (in mm)		Wall Thickness (in mm)		Length in Meter	End Type		Recommanded installation depth in meter
mm	inch	min	max	min	max
25 32 40 50 65 80 100	1" 1¼" 1½" 2" 2½" 3" 4"	33.0 42.0 48.0 60.0 75.0 88.0 113.0	33.3 42.3 48.3 60.3 75.3 88.3 113.4	4.2 4.1 4.1 4.1 4.2 5.0 5.7	4.7 4.6 4.6 4.6 4.8 5.6 6.4	3 3 3 3 3 3 3	M/F or with coupler M/F or with coupler M/F or with coupler coupler coupler coupler coupler		300 250 250 200 160 170 150

FEATURES & BENEFITS GREEN COLOUMN PIPES

• light weight
• high tensile load capacity
• leak proof joints
• Long life with economy and hence emerges as the best option for conventional metal pipes.
